MEMRECAM HX-3
High Speed Camera System

► Datenblatt Memrecam HX-3

► FTP-Site

2560 x 1920 up to 2,000 frames per second (fps)
HX3 : Full Performance
HX3E : Limited in Frame Rate and Shutter Speed

Memrecam HX-3 Features

CMOS Sensor
2560 X 1920 - all Active Pixels

Bit Depth 12/10/8-bit (selectable)

Adjustable Electronic Shutter
Minimum HX3E 1.1 μs; HX3 :300ns

Adjustable Frame Rates
in 1fps steps

Adjustable Resolution

Variable Framing Profile
a variety of frame rates in one recording sequence

Multiple Trigger Modes
Burst,multi-trigger, restart-trigger and image trigger

Sync
High resolution timing and sync to < 50ns

Straddle Mode
Inter-frame time for PIV applications = 125ns

Memory Segmentation
Dual Segment Recording Simultaneously record to two separate memory
segments at two different recording speeds

High Light Sensitivity
ISO 2500 (colour) ISO 10,000 (mono)

Ultra High Sensitivity in Super Pixel Mode (2x2)
ISO 10,000 (colour) ISO 40,000 (mono)

Sealed Core
protects against dust, sand, dirt, etc. for use in dirty environments

Auto Exposure Control
Automatic Temperature Calibration
Ultra-Fast Gig-E Interface with DataLock

Fast Download
to USB 2.0 HDD

Continuous Live Video Output

Stand alone control
no PC required

Memory Backup Battery

Dynamic Range Expansion Shutter
IRIG-B Capture & Sync with Phase Shift

Compact Design
5.5kg -110W x 140H x 333D(mm)


► Datenblatt Memrecam HX-3

► FTP-Site

×

MEMRECAM HX-5
High Speed Camera System

► Datenblatt Memrecam HX-5

► FTP-Site

2560 x 1920 up to 1,370 frames per second (fps)
HX5: Full Performance
HX5E: Limited in Frame Rate and Shutter Speed

Memrecam HX-5 Features

CMOS Sensor
2560 X 1920 - all Active Pixels

Bit Depth
12/10/8-bit (selectable)

Adjustable Electronic Shutter
Minimum HX5E 1.1?s ; HX5 : 300ns

Adjustable Frame Rates
in 1fps steps

Adjustable Resolution

Variable Framing Profile
a variety of frame rates in one recording sequence

Multiple Trigger Modes
Burst,multi-trigger, restart-trigger and image trigger

Sync
High resolution timing and sync to < 73ns

Straddle Mode
Inter-frame time for PIV applications = 182ns

Memory Segmentation
Dual Segment Recording
Simultaneously record to two separate memory
segments at two different recording speeds

High Light Sensitivity
ISO 2500 (colour) ISO 10,000 (mono)

Ultra High Sensitivity in Super Pixel Mode (2x2)
ISO 10,000 (colour) ISO 40,000 (mono)

Sealed Core
protects against dust, sand, dirt, etc. for use in dirty environments

Auto Exposure Control

Automatic Temperature Calibration

Ultra-Fast Gig-E Interface

Fast Download
to USB 2.0 HDD

Continuous Live Video Output

Stand alone control
no PC required

Memory Backup Battery

Dynamic Range Expansion Shutter

IRIG-B Capture & Sync with Phase Shift

Compact Design
5.5kg -110W x 140H x 333D(mm)


► Datenblatt Memrecam HX-5

► FTP-Site

×

MEMRECAM HX-7
High Speed Camera System

► Datenblatt Memrecam HX-7

► FTP-Site

2560 x 1690 @ 1000 frames per second (fps)
2560 x 1920 @ 800 frames per second (fps)
Full HD @ 2000fps
Compact Size 100 x 100 x 200mm - 2.9Kg

Memrecam HX-7 Features

CMOS Sensor
2560 X 1920 - all Active Pixels

Bit Depth
12/10/8-bit (selectable)

Adjustable Electronic Shutter
down to 1μs

Adjustable Frame Rates
in 1fps steps

Adjustable Resolution

Variable Framing Profile
a variety of frame rates in one recording sequence

Multiple Trigger Modes
Burst,multi-trigger, restart-trigger and image trigger

Straddle Mode
Inter-frame time for PIV applications = 286ns

Memory Segmentation

Dual Segment Recording
Simultaneously record to two separate memory
segments at two different recording speeds

High Light Sensitivity
ISO 2500 (colour) ISO 10,000 (mono)

Ultra High Sensitivity in Super Pixel Mode (2x2)
ISO 10,000 (colour) ISO 40,000 (mono)

Sealed Core
protects against dust, sand, dirt, etc. for use in dirty environments

Auto Exposure Control

Automatic Temperature Calibration

Ultra-Fast Gig-E Interface

Fast Download
to USB 3 HDD or C-Fast Compact Flash

Continuous Live Video Output

Stand alone control
no PC required

Memory Backup Battery

Dynamic Range Expansion Shutter

IRIG-B Capture & Sync with Phase Shift

Compact Design
2.9kg -100W x 100H x 200D(mm)


► Datenblatt Memrecam HX-7

► FTP-Site

×

MEMRECAM Q1m
High Speed Camera System

► Datenblatt Memrecam Q1m

► FTP-Site

1280 x 1024 up to 2,000 frames per second (fps)
62 x 62 x 65mm, 400g
HyGe for on-board use (150G, 11ms)

Memrecam Q Series Features

CMOS Sensor
1280 X 1024 @ 2000fps
all Active Pixels

Bit Depth
12/10/8-bit (selectable)

Adjustable Electronic Shutter
down to < 1μs

Small Footprint
62mm x 62mm x 65mm, 400g

Shock Proof (HyGe)
150G for 11ms

Integrated "G" sensor
For Backup Triggering

2/3" c-mount
compatible with most lenses without vignette

Memory Backup Battery
Protect images in case of power loss

Emergency Data Recovery
via SD Card

Integrated Sync - IRIG-B and 1kHz
High resolution timing and sync to < 50ns

High Light Sensitivity
Q1m : ISO 2000 (colour) ISO 8,000 (mono)
Q1v : ISO 8000 (colour) ISO 32,000 (mono)

Power Input 20-32V DC

Power Consumption 20W


► Datenblatt Memrecam Q1m

► FTP-Site

×

MEMRECAM Q2m
High Speed Camera System

► Datenblatt Memrecam Q2m

► FTP-Site

Features

1920 x 1080 up to 2,000 frames per second (fps)

Adjustable Frame Rate

Automatic Temperature Compensated Calibration

Ultra-Fast Gig Gig-E Interface with DataLock

Data Security System – ResQ

Memory Backup

Memory Segmentation

Multiple trigger Modes, Including Built

Built-in Hi Hi-G Trigger Circuit

Multi Camera Operation with Precise Synchronization

IRIG-B Capture & Sync

Specifications

Sensor:
Approx. 4/3” (19.2mm x 10.8mm)

Active Pixel:
1920 X 1080

ISO（REI):
ISO 8,000 (Color) 32,000 (Mono)

Electric Shutter:
Global, 1/100～1/909,090 sec. (1.1us）

Memory:
16GB

Memory Segment:
Up to 16 Segments

Bit Depth:
8bit/10bit

Lens Mount:
C

Record Time:
4 sec (8bit) at 1920x1080 @2,000 fps

I/O Signal:
Trigger/SYNC IN & OUT / POWER-CTL
(5VTTL isolation IF)

Shock:
200G 7ms, 150G 11ms

Auto Trigger Function:
Triggered by shock using built-in G-sensor
capable of measuring up to 200G, 3 3-axis

Memory Backup Time:
Approximately 1 hour

Control:
Nac MLink

Power:
18-36VDC

Dimensions:
W62×H62 ×D87.5mm

Weight:
600g

Options

・F-Mount Adapter

・EF Mount Adapter

・Hi -G lens

・Carrying Case

・Q-Hub for multiple views

・MCFF Fast Conversion License

・External Hi Hi-G Battery

・Hi -G Camera Holder

► Datenblatt Memrecam Q2m

► FTP-Site

×

MEMRECAM Q1v
High Speed Camera System

► Datenblatt Memrecam Q1v

► FTP-Site

640 x 480 @ 8000 frames per second (fps)
extremly light sensitive
62 x 62 x 65mm, 400g
HyGe for on-board use (150G, 11ms)

Memrecam Q Series Features

CMOS Sensor
640 x 480 @ 8000fps
all Active Pixels

Bit Depth
12/10/8-bit (selectable)

Adjustable Electronic Shutter
down to < 1μs

Small Footprint
62mm x 62mm x 65mm, 400g

Shock Proof (HyGe)
150G for 11ms

Integrated "G" sensor
For Backup Triggering

2/3" c-mount
compatible with most lenses without vignette

Memory Backup Battery
Protect images in case of power loss

Emergency Data Recovery
via SD Card

Integrated Sync - IRIG-B and 1kHz
High resolution timing and sync to < 50ns

High Light Sensitivity
Q1m : ISO 2000 (colour) ISO 8,000 (mono)
Q1v : ISO 8000 (colour) ISO 32,000 (mono)

Power Input 20-32V DC

Power Consumption 20W


► Datenblatt Memrecam Q1v

► FTP-Site

×

MEMRECAM Q2m
High Speed Camera System

► Datenblatt Memrecam Q2m

► FTP-Site

Features

1920 x 1080 up to 2,000 frames per second (fps)

Adjustable Frame Rate

Automatic Temperature Compensated Calibration

Ultra-Fast Gig Gig-E Interface with DataLock

Data Security System – ResQ

Memory Backup

Memory Segmentation

Multiple trigger Modes, Including Built

Built-in Hi Hi-G Trigger Circuit

Multi Camera Operation with Precise Synchronization

IRIG-B Capture & Sync

Specifications

Sensor:
Approx. 4/3” (19.2mm x 10.8mm)

Active Pixel:
1920 X 1080

ISO（REI):
ISO 8,000 (Color) 32,000 (Mono)

Electric Shutter:
Global, 1/100～1/909,090 sec. (1.1us）

Memory:
16GB

Memory Segment:
Up to 16 Segments

Bit Depth:
8bit/10bit

Lens Mount:
C

Record Time:
4 sec (8bit) at 1920x1080 @2,000 fps

I/O Signal:
Trigger/SYNC IN & OUT / POWER-CTL
(5VTTL isolation IF)

Shock:
200G 7ms, 150G 11ms

Auto Trigger Function:
Triggered by shock using built-in G-sensor
capable of measuring up to 200G, 3 3-axis

Memory Backup Time:
Approximately 1 hour

Control:
Nac MLink

Power:
18-36VDC

Dimensions:
W62×H62 ×D87.5mm

Weight:
600g

Options

・F-Mount Adapter

・EF Mount Adapter

・Hi -G lens

・Carrying Case

・Q-Hub for multiple views

・MCFF Fast Conversion License

・External Hi Hi-G Battery

・Hi -G Camera Holder

► Datenblatt Memrecam Q2m

► FTP-Site

×

MEMRECAM Q5
Multi-Head High Speed Camera System

► Datenblatt Memrecam Q5

► FTP-Site

Compact : 195W x 40H x 125D, 1.8Kg
Up-to 4 camera heads on one recorder

Memrecam Q5 Features

Compact
195W x 40H x 125D; 1.8Kg

Shock Proof (HyGe)
200G, 7ms ; 150G, 11ms

Integrated "G" sensor
For Backup Triggering

Bit Depth
10 / 8-bit (selectable)

Adjustable Electronic Shutter
down to 1?

Adjustable Resolution

Sync
High resolution timing and sync

Gig-E Interface

Memory Backup Battery


Multiple Camera Head Options

P-Cam
25 x 25 x 95mm
640 x 480 resolution
Angled and Straight Options

S-Cam
25 x 25 x 25mm
640 x 480 resolution

C-Cam
35 x 25 x 58mm
640 x 480 resolution

?Cam
15 x 16 x 16mm
640 x 480 resolution


► Datenblatt Memrecam Q5

► FTP-Site

×

MEMRECAM MX
Multi Head High Speed Camera System

► Datenblatt Memrecam MX

► FTP-Site

1920 x 1080 up to 2000 frames per second (fps)
Compact Camera Heads : 75 x 55 x 55mm - 450g

Memrecam MX Features:

MX-5 DRP

Up to 4 Camera Heads

Input Signals
Trigger, EST, IRIG-B, PWR CTL

Output Signals
Exposure Pulse, Status

1000BT / USB3.0

HyGe
150G (6-axis) Half Sine 11ms
200G (6-axis) Half sine 7ms

24V DC

195 x 60 x 160 : 4Kg

MX-Camera Head

1920 x 1080 resolution

High Light Sensitivity
ISO 8000 Colour
ISO 32000 Mono

4GB Memory

8/10 bit

C-Mount

HyGe
150G (6-axis) Half Sine 11ms
200G (6-axis) Half sine 7ms

75 x 55 x 55mm :450g


► Datenblatt Memrecam MX

► FTP-Site

×

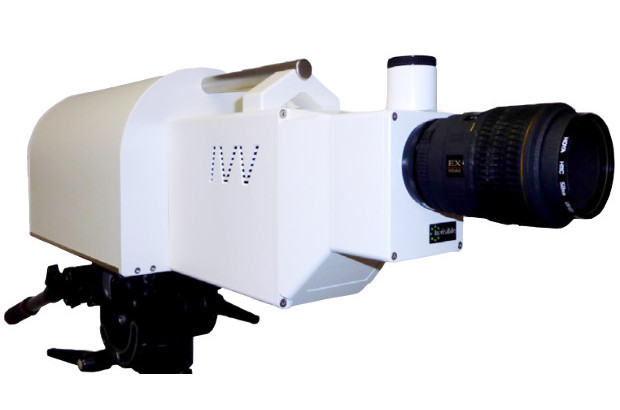

Ultraviolett-Bildverstärker und
Ultra-Highspeed-Kamerasysteme:

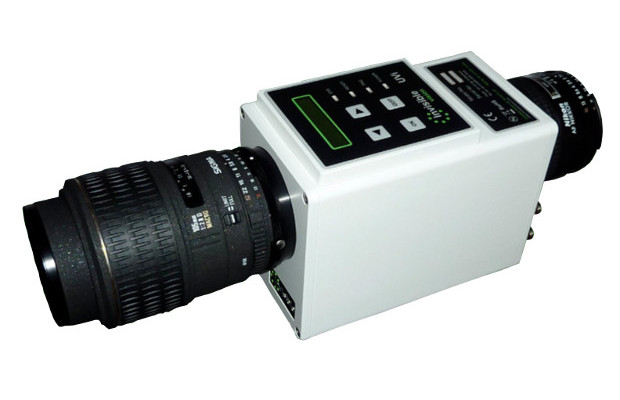

UVi 1850 Series

► Datenblatt UVi 1850

► FTP-Site

18mm Format
High Speed Video Camera Intensifier

UVi 1850 Series Features

UVi 1850 Series Camera Intensifier

18mm Output Diameter

Ultra Fast Shutter Speeds

Customized for UV to Near IR Imaging

Superior Gain Boosting Performance

Optimized for Digital High Speed Video Cameras

UV to NIR spectral respons
Fast Gating to 5ns

High Gain/Sensitivity

Frames rates to > 1,000,000 fps with HSV

Up to 20,000,000 fps in burst mode

Integral control panel and external USB control

Exceptional resolution

Choice of optimized photocathodes & phosphors


► Datenblatt UVi 1850

► FTP-Site

×

Ultraviolett-Bildverstärker und
Ultra-Highspeed-Kamerasysteme:
Ultra UHSi 12/24

► Datenblatt Ultra UHSi 12/24

► FTP-Site

Ultra High Speed Framing Camera

Ultra UHSi 12/24 Features

200 Million frames per second

5ns Gating

Up to 24 Independently Programmed Frames

Megapixel Performance

Intensified

Optical viewfinder

GigE PC Interface

IVV Imprint PC software for control/analysis

Compact, rugged design

Versatile triggering including 'Synchro' mode

Photocathode options:
S20 (UV biased, UV to Visible) or S25 (Visible biased, UV to NIR)


► Datenblatt Datenblatt Ultra UHSi 12/24

► FTP-Site

×

Ultraviolett-Bildverstärker und
Ultra-Highspeed-Kamerasysteme:
Ultra UBSi 12/24

► Datenblatt Ultra UBSi 12/24

► FTP-Site

Ultra High Speed Framing Camera

Ultra UHSi 12/24 Features

True 1 Billion FPS

Up to 24 Frames

Megapixel Performance

1ns (optically calibrated)
Gating and Interframe

Up to 24 Independently Programmed Frames

Megapixel Performance

Intensified

Optical viewfinder

GigE PC Interface

IVV Imprint PC software for control/analysis

Compact, rugged design

Photocathode options:
S20 (UV biased, UV to Visible) or S25 (Visible biased, UV to NIR)


► Datenblatt Datenblatt Ultra UBSi 12/24

► FTP-Site

×

Optronis CR600x2

► Datenblatt Optronis CR600x2

► FTP-Site

High Speed Camera System

CamRecord CR600x2 Features

CMOS Sensor
1280 X 1024 @ 500fps
14 ? - all Active Pixels

Bit Depth
8-bit or 10-bit

Adjustable Electronic Shutter
down to 2us

GigaBit Ethernet Interface

Lens Mount
C-Mount OR F-Mount supporting "G type"

Compact Housing
145 x 95 x 78mm

Synchronisation
Internal and external sync recording

Light Sensitivity
ISO 4000 Mono
ISO 1000 Colour

Power
12VDC / 12W

Memory
8GB or 16GB

145 x 95 x 78.5mm; 1050g


► Datenblatt Optronis CR600x2

► FTP-Site

×

Optronis CR3000x2

► Datenblatt Optronis CR3000x2

► FTP-Site

High Speed Camera System

CamRecord CR3000x2 Features

CMOS Sensor
1696 X 1710 @ 500fps
8 ? - all Active Pixels

Bit Depth
8-bit

Adjustable Electronic Shutter
down to 2us

GigaBit Ethernet Interface

Lens Mount
C-Mount OR F-Mount supporting "G type"

Compact Housing
145 x 95 x 78mm

Synchronisation
Internal and external sync recording

Light Sensitivity
ISO 1500 Mono
ISO 500 Colour

Power
12VDC / 12W

Memory
8GB or 16GB

145 x 95 x 78.5mm; 1050g


► Datenblatt Optronis CR3000x2

► FTP-Site

×

Optronis Sprinter FHD

► Datenblatt Optronis Sprinter FHD

► FTP-Site

High Speed Camera System

Optronis FHD Features

CMOS Sensor
1920 x 1080 - all Active Pixels

Bit Depth
8-bit

Adjustable Electronic Shutter
down to 2µs

Adjustable Frame Rates
in 1fps steps

Dynamic Range
48dB

Adjustable Resolution

Auto Exposure Control

Ultra-Fast Gig-E Interface

Large Memory
16GB

HARD Disk Non-Volatile Memory
SSD up to 512GB

Continuous Live Video Output

Wireless LAN Setup and Control via Tablet PC

Compact Design
1.4kg -150W x 92H x 85D(mm)

Lens Mount
F-Mount, EF/EFS Mount, C-Mount

Remote Control
Wireless remote control via PC or Android


► Datenblatt Optronis Sprinter FHD

► FTP-Site

×

Optronis Sprinter CR3500 HD

► Datenblatt Optronis Sprinter CR3500 HD

► FTP-Site

High Speed Camera System

Sprinter HD Features

CMOS Sensor
1280 X 864 - all Active Pixels

Bit Depth
8-bit

Adjustable Electronic Shutter
down to 2µs

Adjustable Frame Rates
in 1fps steps

Dynamic Range
48dB

Adjustable Resolution

Auto Exposure Control

Ultra-Fast Gig-E Interface

Large Memory
up to 32GB

HARD Disk Non-Volatile Memory
SSD up to 512GB

Continuous Live Video Output

Wireless LAN Setup and Control via Tablet PC
IRIG-B Capture & Sync with Phase Shift

Compact Design
1.4kg -150W x 92H x 85D(mm)

Lens Mount
F-Mount, EF/EFS Mount, C-Mount

Remote Control
Wireless remote control via PC or Android


► Datenblatt Optronis Sprinter CR3500 HD

► FTP-Site
